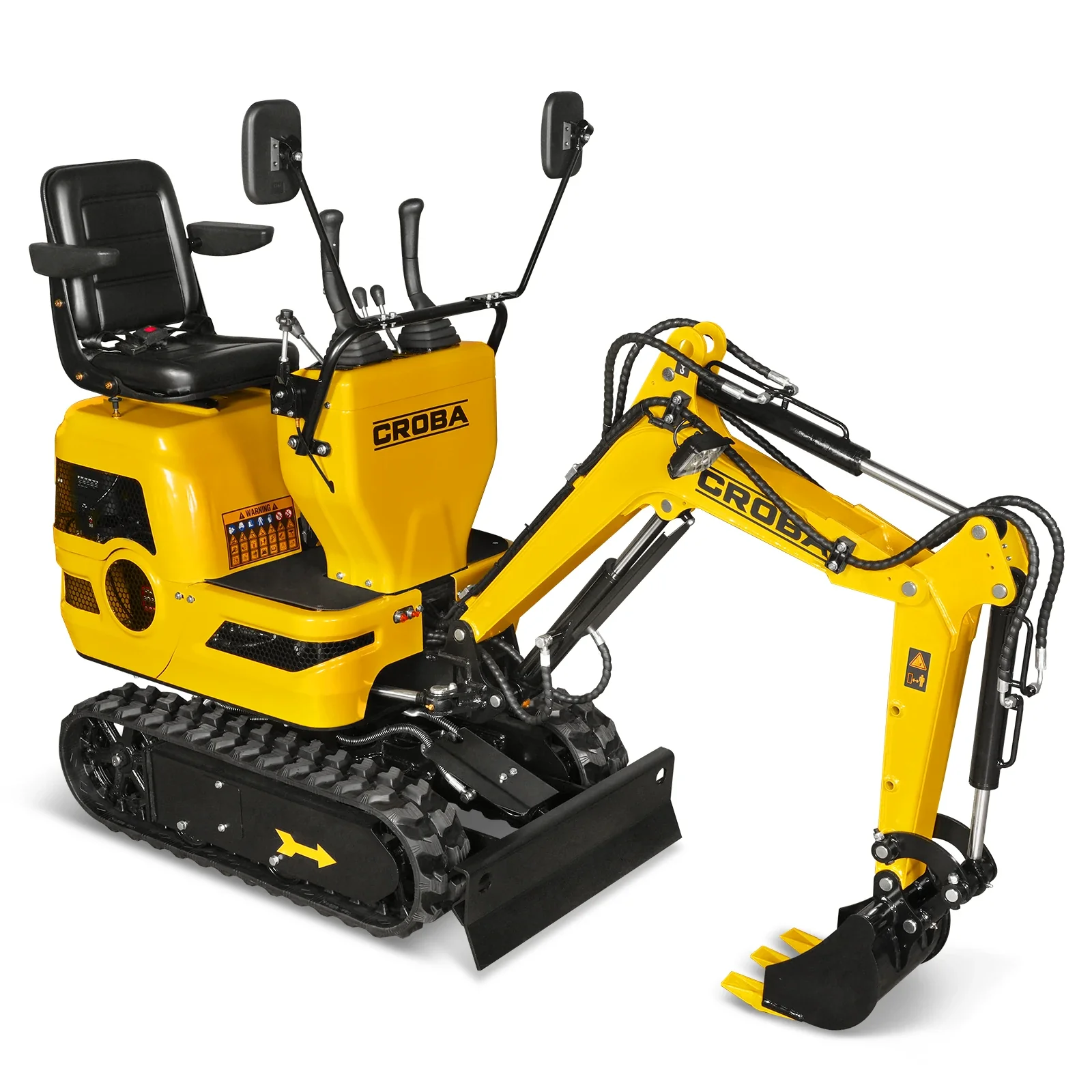

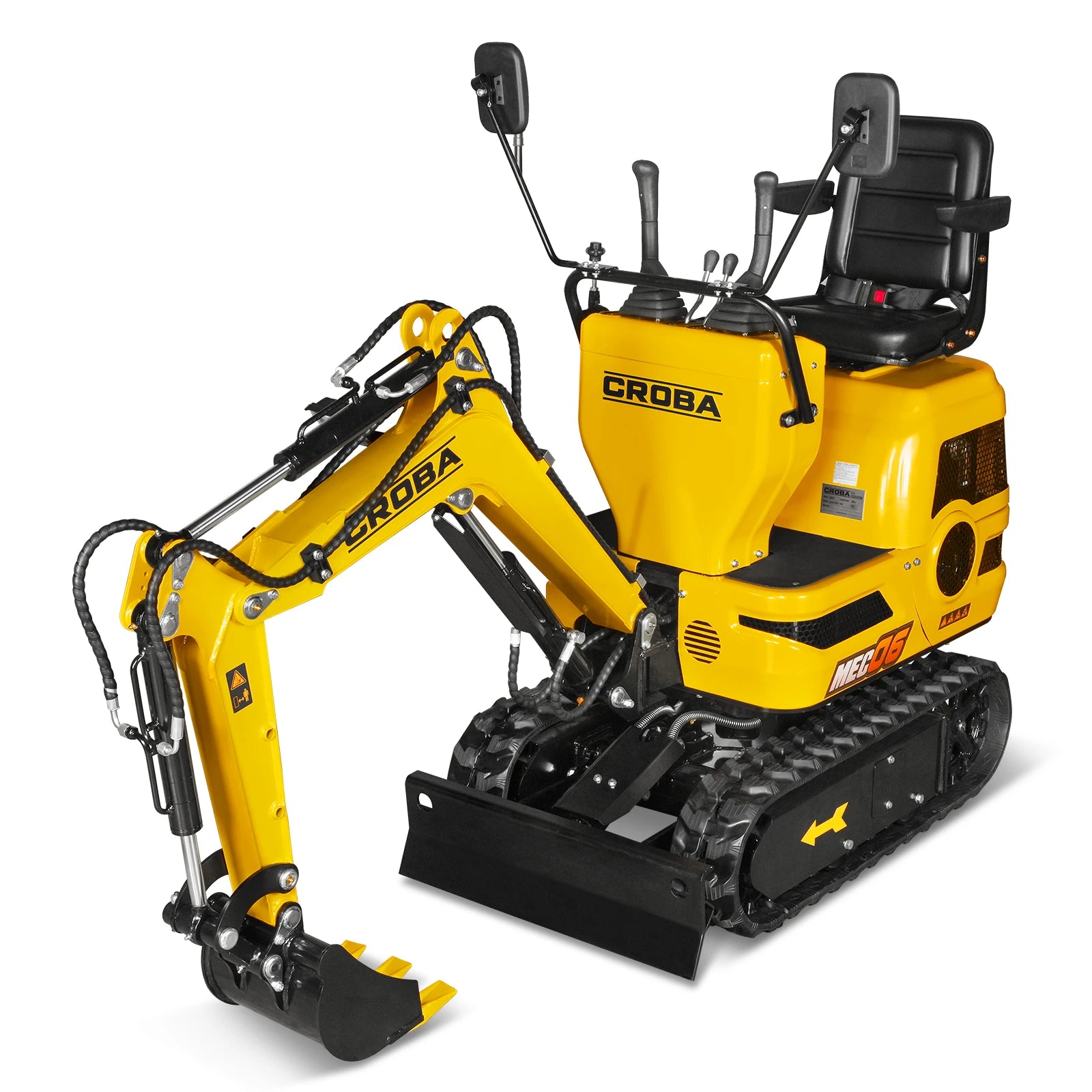

Mini Compact Excavator Loncin 300cc 9hp Engine, 43.3″ Max. Digging Depth, 1345 LBS Operating Weight, MEC06

Operating Weight
1345 lb
Hydraulic Oil Tank Capacity
2.64 gal
Standard Bucket Capacity
0.53 ft³
Auxiliary Std Flow
4.76 gal/min
Standard Bucket Width
11.4 in
Max. Tractive Force
742 lbf
Max. Travel Speed
1.12 mile/h
Arm Digging Force
1012 lbf
Slewing Speed
9.5 RPM
Bucket Digging Force
1911 lbf
Max. Gradeability
15°
Rated Lift Capacity
330 lb
Track Ground Pressure
3.84 psi
Lift Radius
78.7 in
Operating Range
Max.Digging Radius On Ground
82.7 in
Max. Vertical Digging Depth
45.3 in
Max. Digging Depth
43.3 in
Min. Turning Radius
47.2 in
Overall Operating Height (Fully Raised)
79.9 in
Max. Lifting Height Dozer Blade
5.5 in
Max. Digging Radius
90.6 in
Max. Depth Dozer Blade
5.5 in
Max. Unloading Height
67.3 in
Main Dimensions
Wheel Track
31.5 in
Track Height
12.6 in
Track Length
43.3 in
Transportation Length
83.4 in
Upper Chassis Ground Clearance
4.5 in
Height Of Seat To Ground
47.2 in
Counterweight Turning Radius
23.6 in
Overall Height
68.1 in
Chassis Width
28 in
Boom Swing-Right
65°
Track Width
5.9 in
Boom Swing-Left
55°

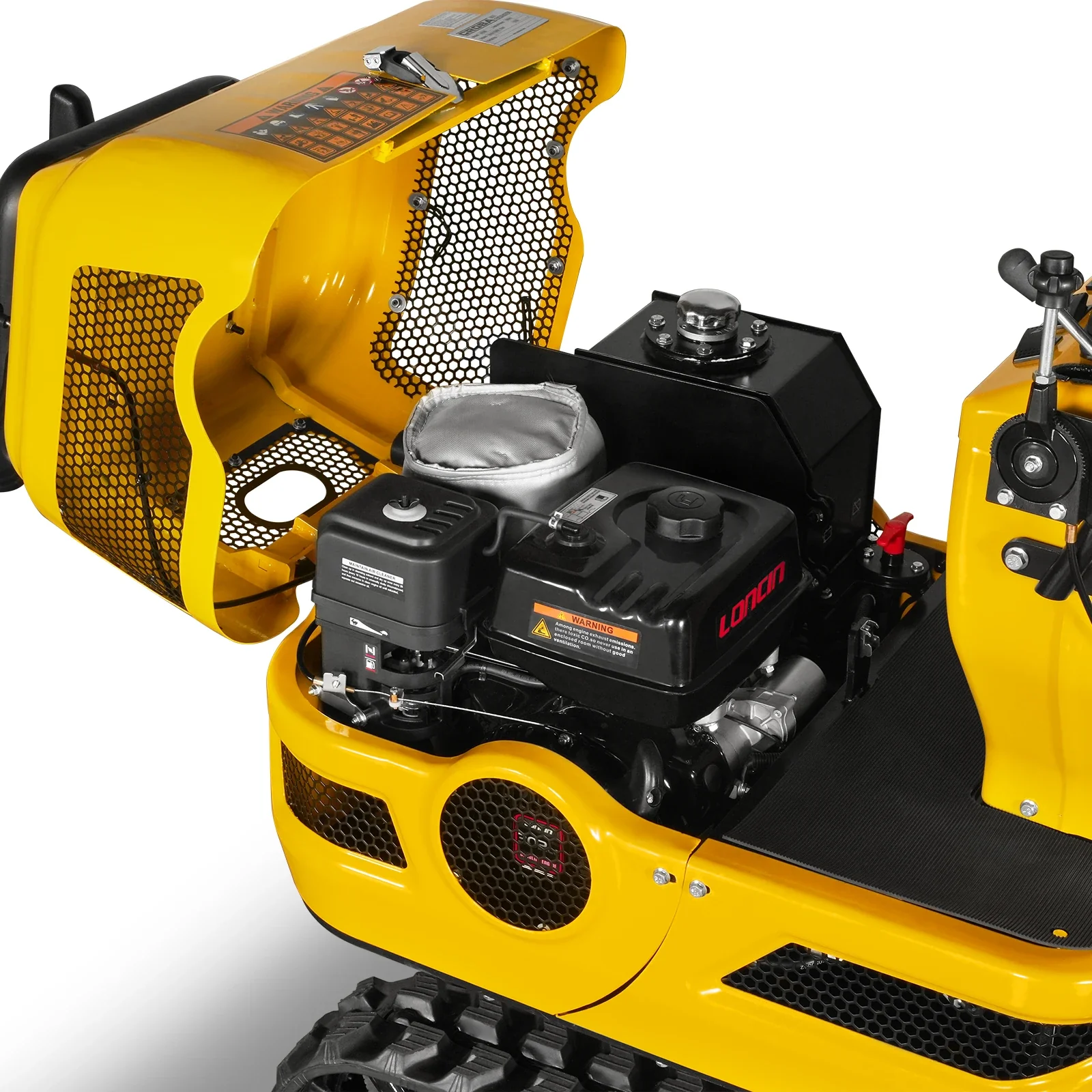

Engine
Model
Loncin G300FDA
Max. Net Torque
20.3 N.m/2500 RPM
Displacement
300 cc; 9 HP
Fuel Tank Capacity
1.45 gal
Engine Type
4-stroke, overhead valve, single cylinder
Engine Oil Capacity
0.25 gal
Start Type
Electric start
Engine Oil Type
10W-30
Rated Power
6.8 KW/3600 RPM
Service
Package Method
Steel Frame Packaging
Package Size
89x29x49 in
Warranty for Machine/Engine
1 Year
Weight (N.W./G.W.)
1345/1510 lb
