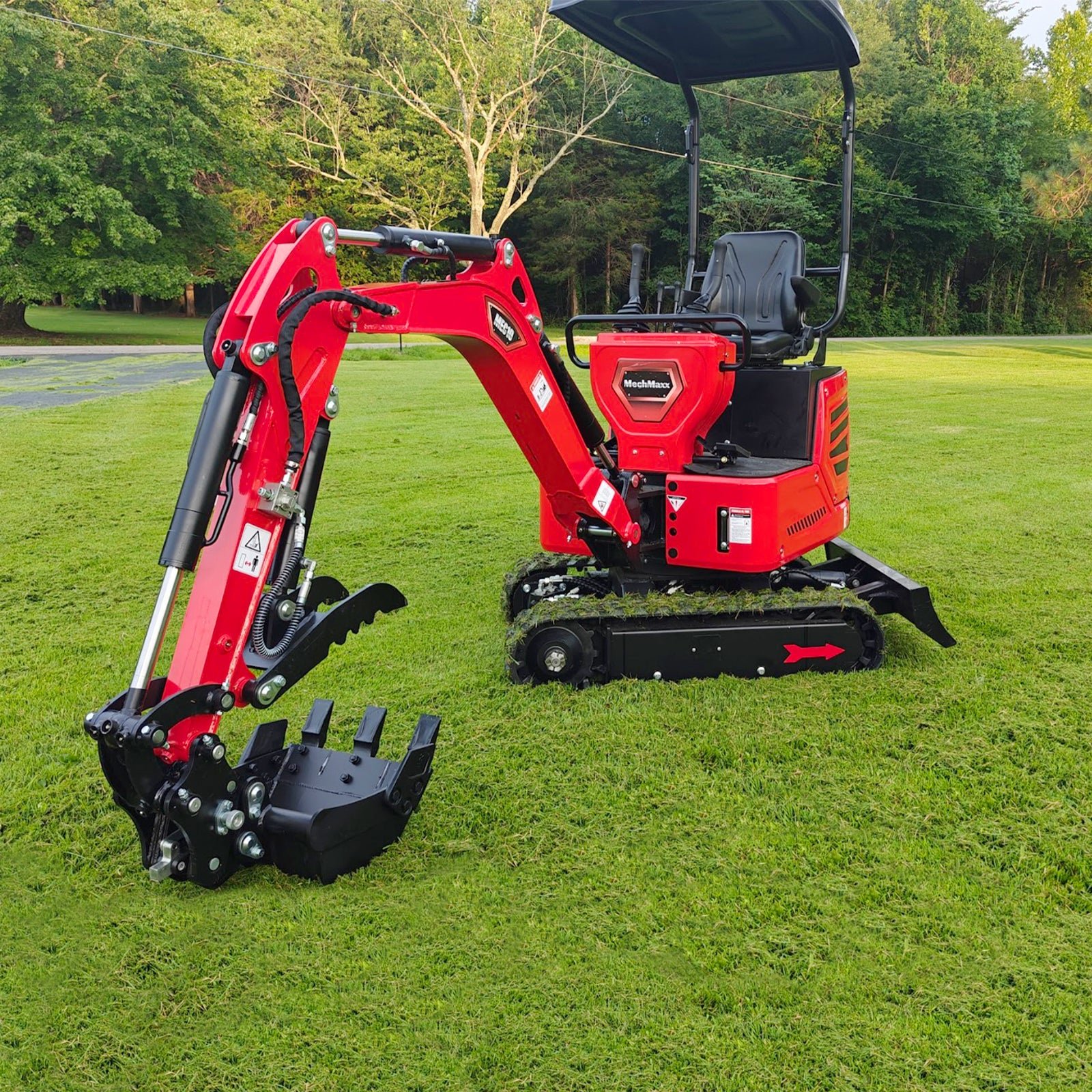

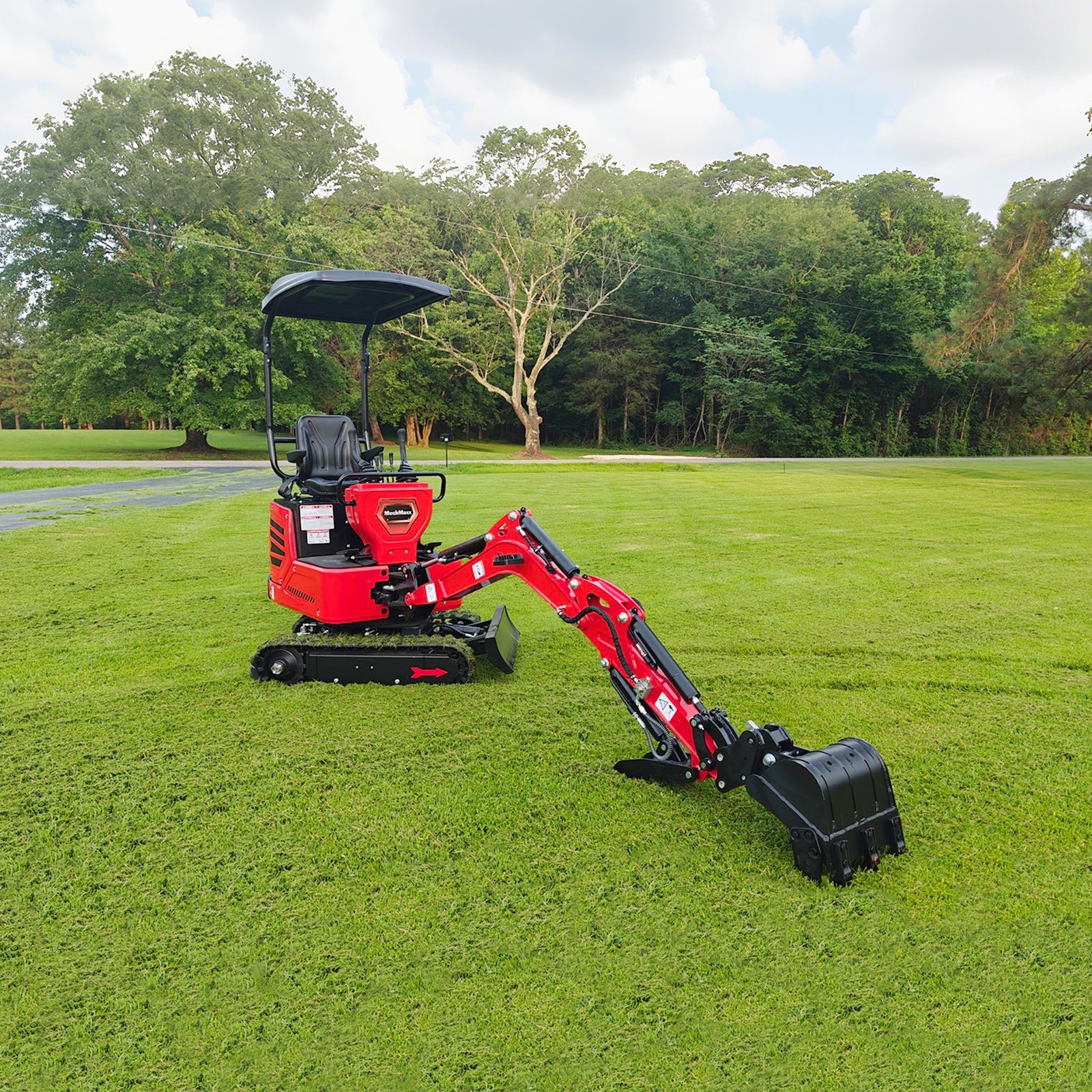

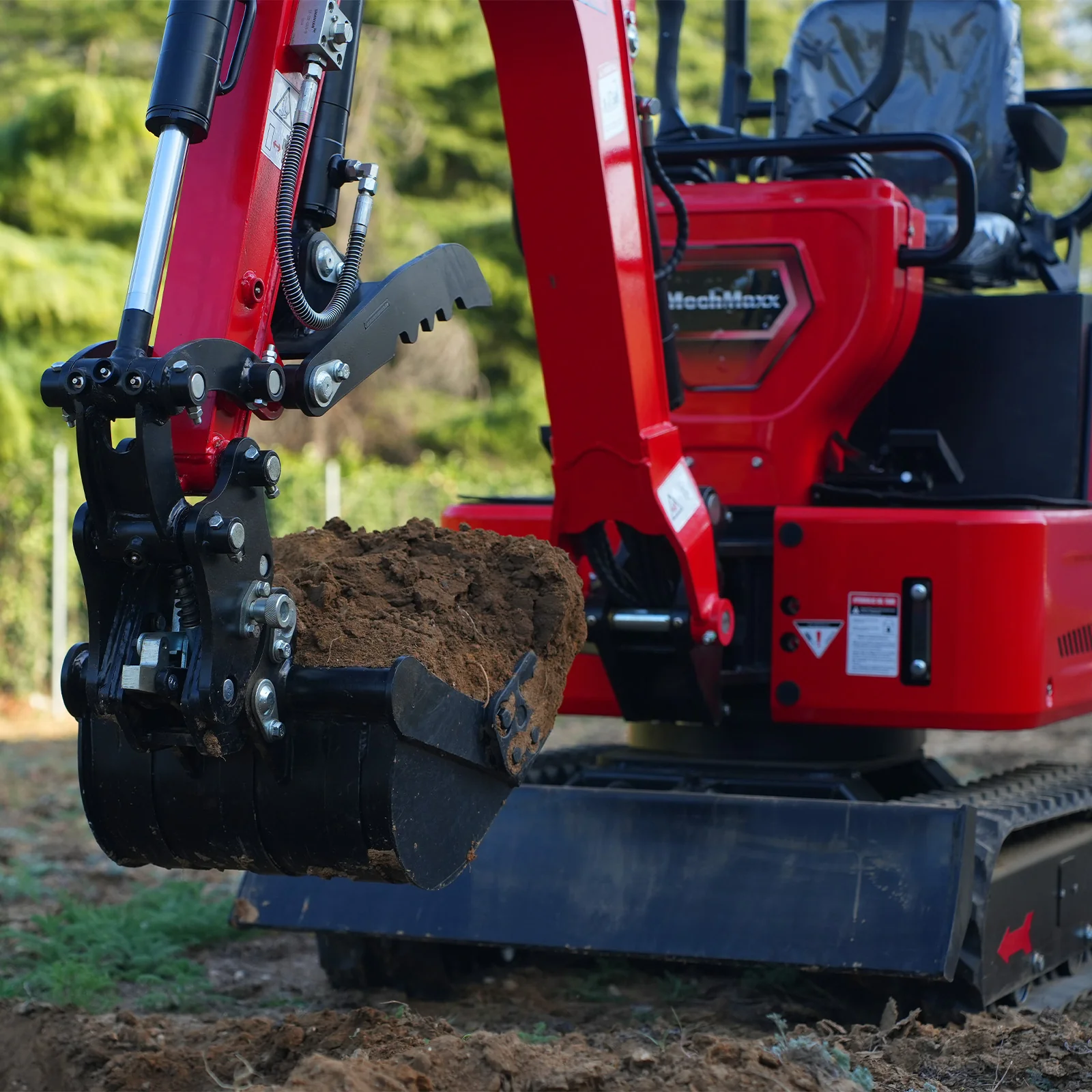

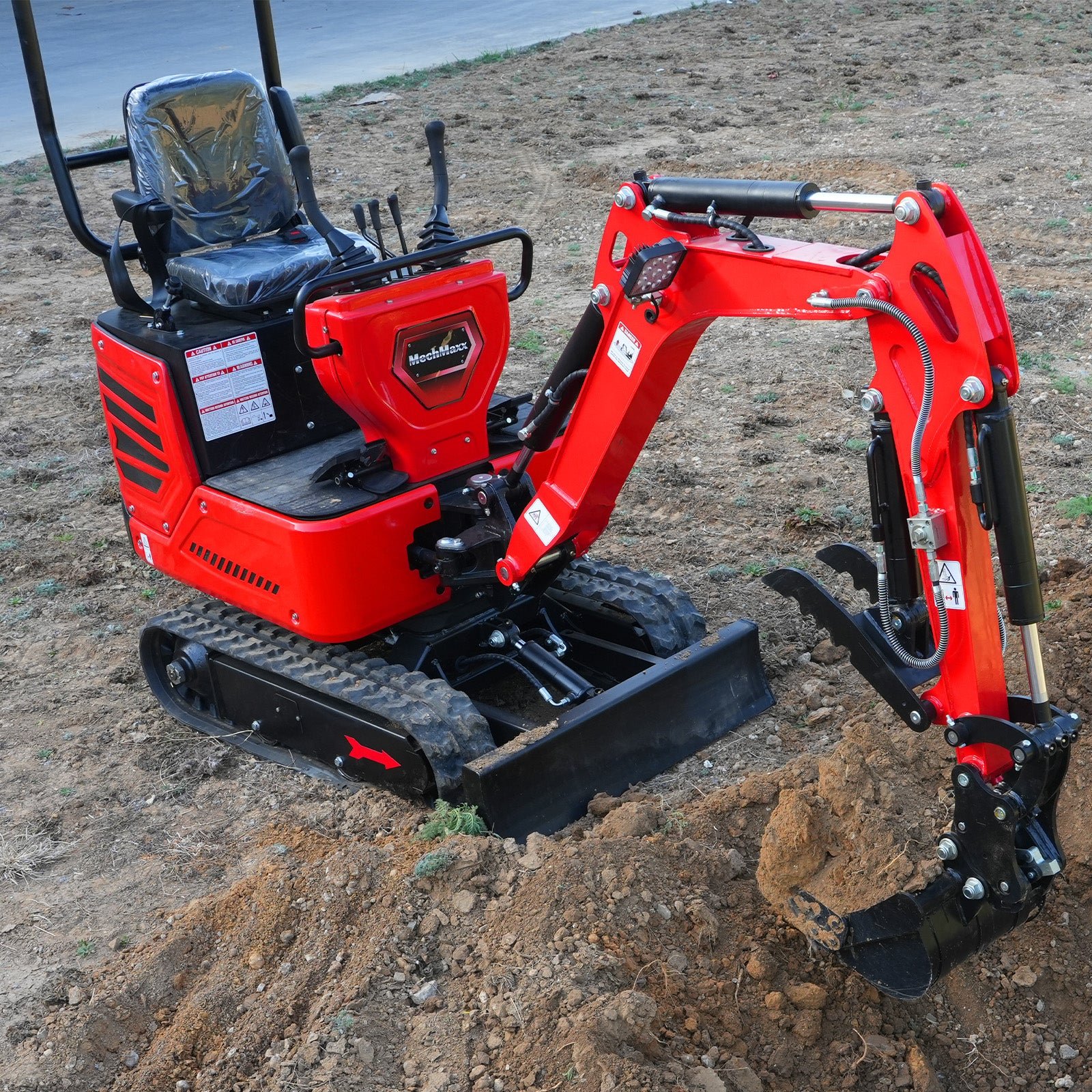

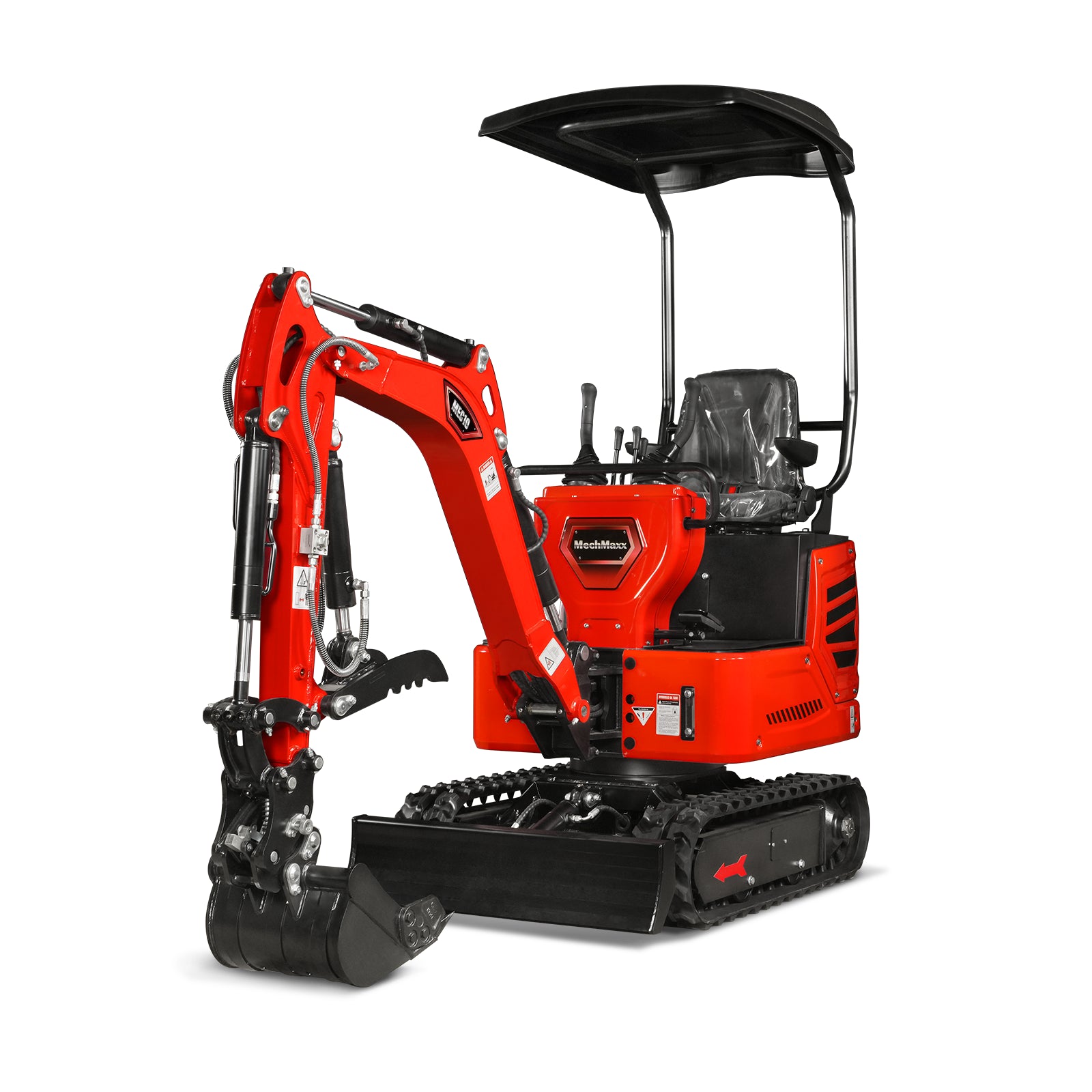

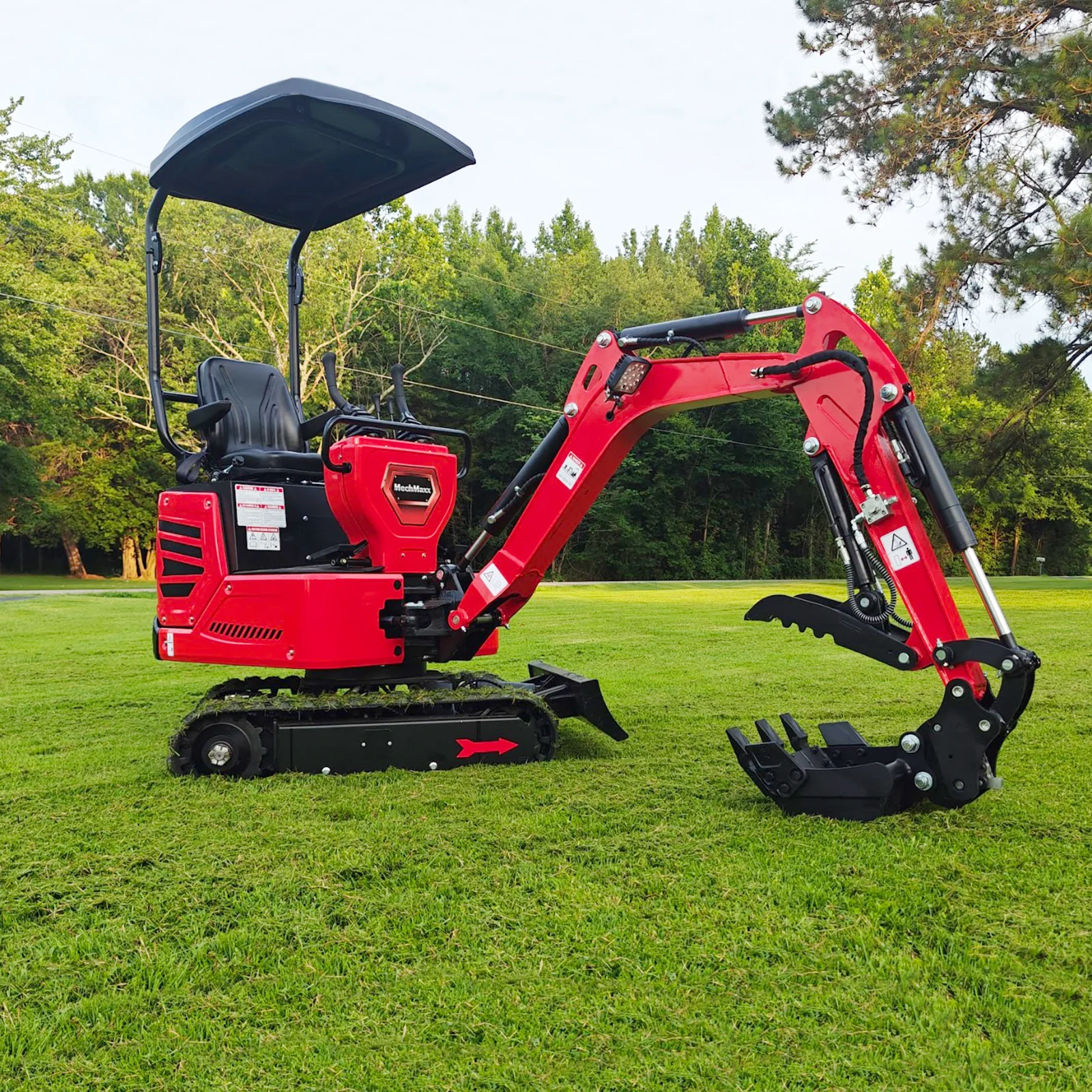

Mini Compact Excavator HONDA GX390 Engine, 65.7″ Max. Digging Depth, 2280 LBS Operating Weight, MEC10

Standard Bucket Capacity
0.7 cu-ft
Auxiliary Std Flow
5.7 gal/min
Standard Bucket Width
15 in
Max. Tractive Force
3035 lbf
Max. Travel Speed
0.75 mile/h
Arm Digging Force
1191 lbf
Slewing Speed
11 rpm
Bucket Digging Force
1619 lbf
Max. Gradeability
30°
Rated Lift Capacity
728 lb
Track Ground Pressure
5.1 psi
Lift Radius
80 in
Hydraulic Oil Tank Capacity
3.96 gal
Operating Weight
2280 lb
Operating Range
Max.Digging Radius On Ground
119 in
Max. Vertical Digging Depth
63.3 in
Max. Digging Depth
65.7 in
Min. Turning Radius
46.8 in
Overall Operating Height (Fully Raised)
111.8 in
Max. Lifting Height Dozer Blade
5.9 in
Max. Digging Radius
121 in
Max. Depth Dozer Blade
7.4 in
Max. Unloading Height
81.8 in

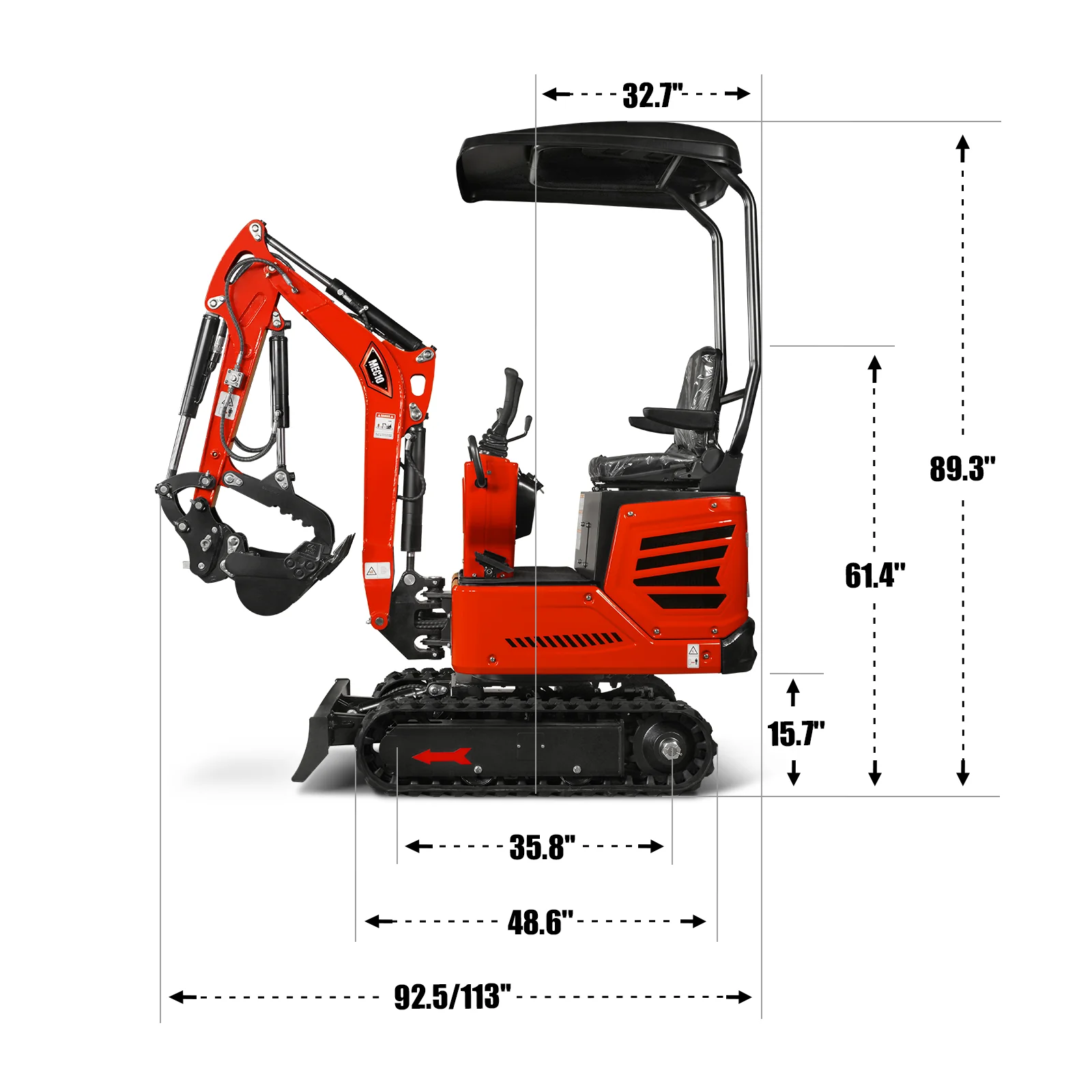

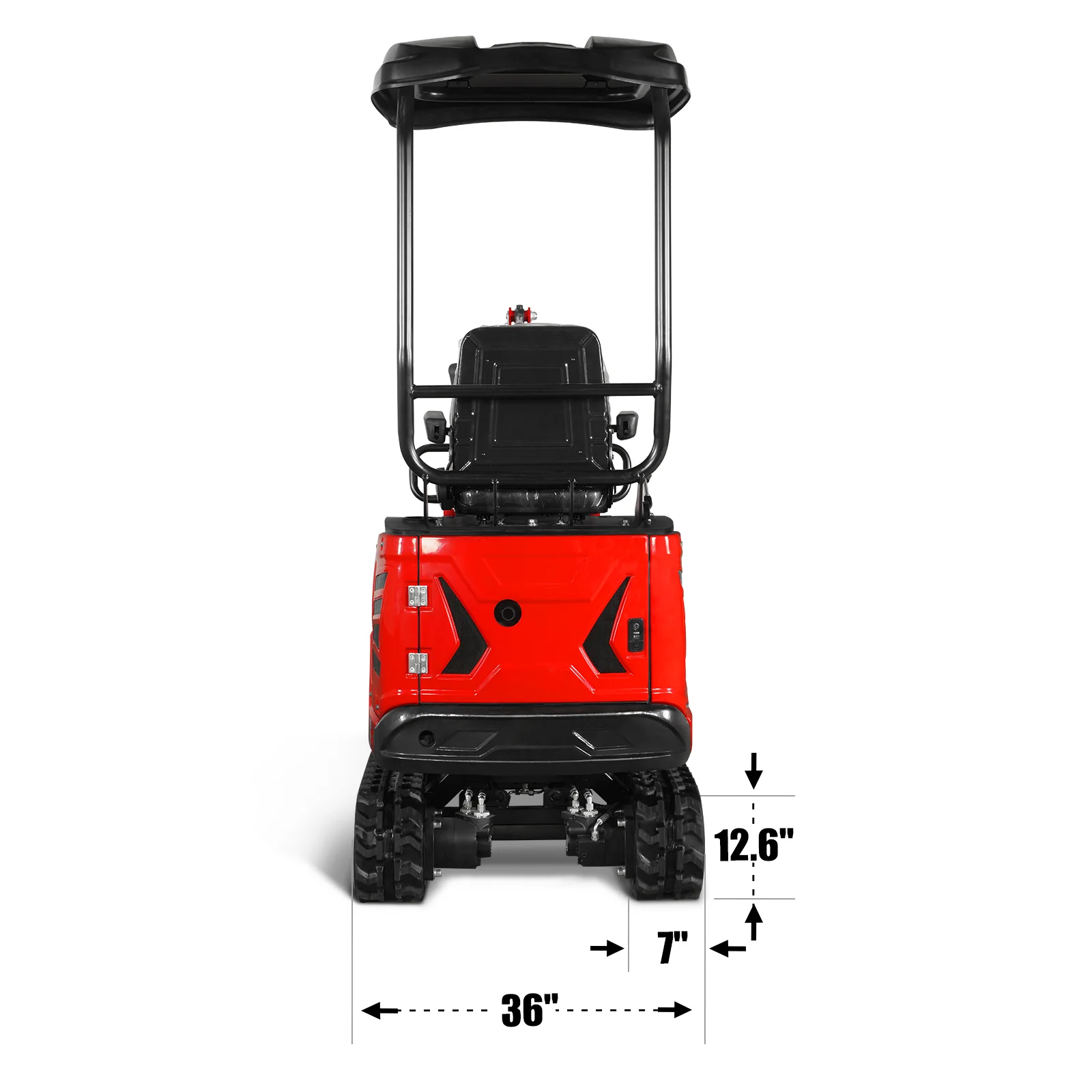

Main Dimensions
Wheel Track
35.8 in
Track Height
12.6 in
Track Length
48.6 in
Transportation Length
92.5/113 in
Upper Chassis Ground Clearance
15.7 in
Height Of Seat To Ground
61.4 in
Counterweight Turning Radius
32.6 in
Overall Height
89.3 in
Chassis Width
36 in

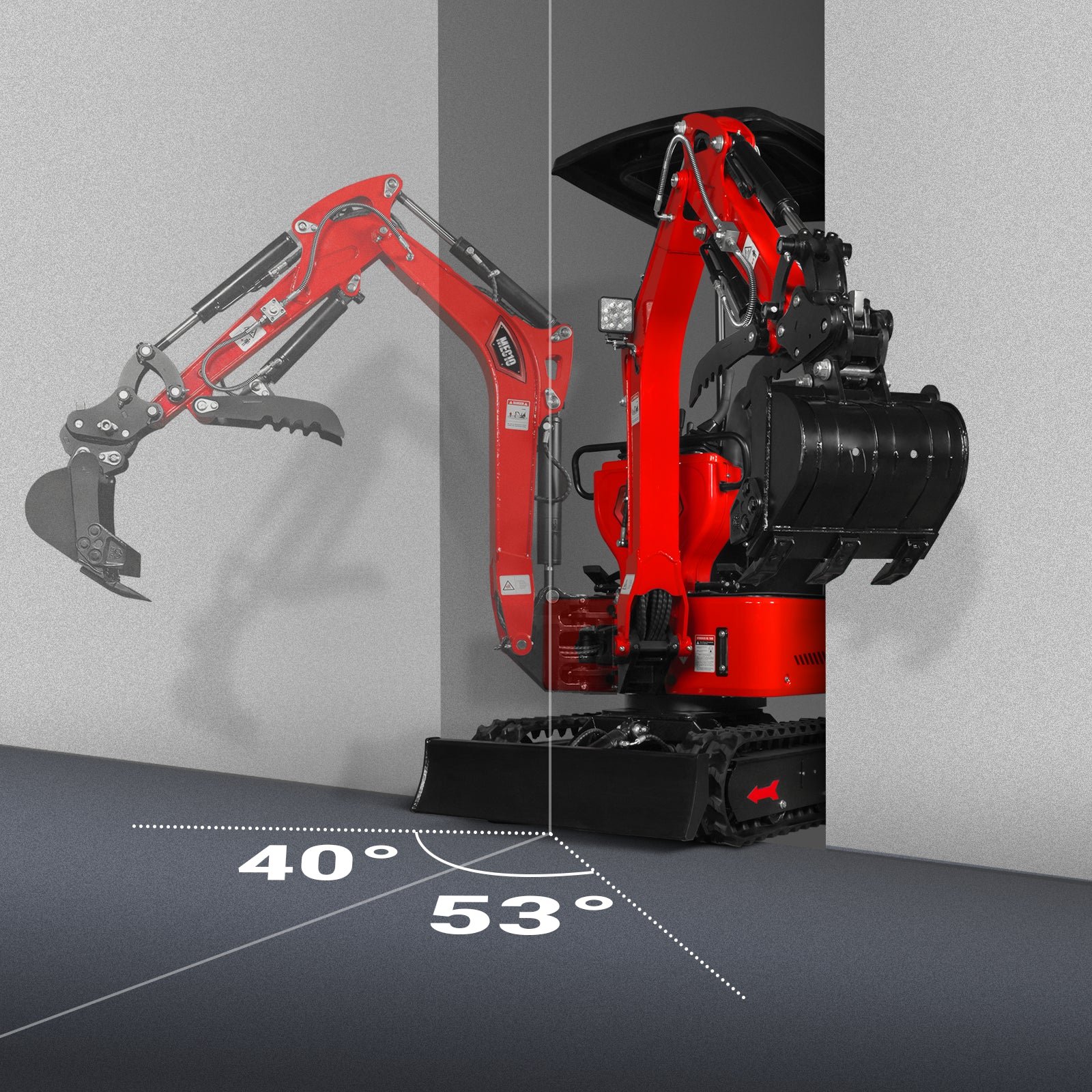

Boom Swing-Right
40°
Track Width
7 in
Boom Swing-Left
53°
Engine
Model
Honda GX390
Max. Net Torque
26.5 N.m/2500 RPM
Displacement
389 cc; 11.7 HP
Fuel Tank Capacity
1.6 gal
Engine Type
4-stroke, overhead valve, single cylinder
Engine Oil Capacity
0.3 gal
Start Type
Electric start
Engine Oil Type
10W-30
Rated Power
8.7 KW/3600 RPM
Warranty
1 Year
Package
Package Method
Plywood Case
Weight (N.W./G.W.)
2100/2376 lb
Dimensions
91x40x98 in
