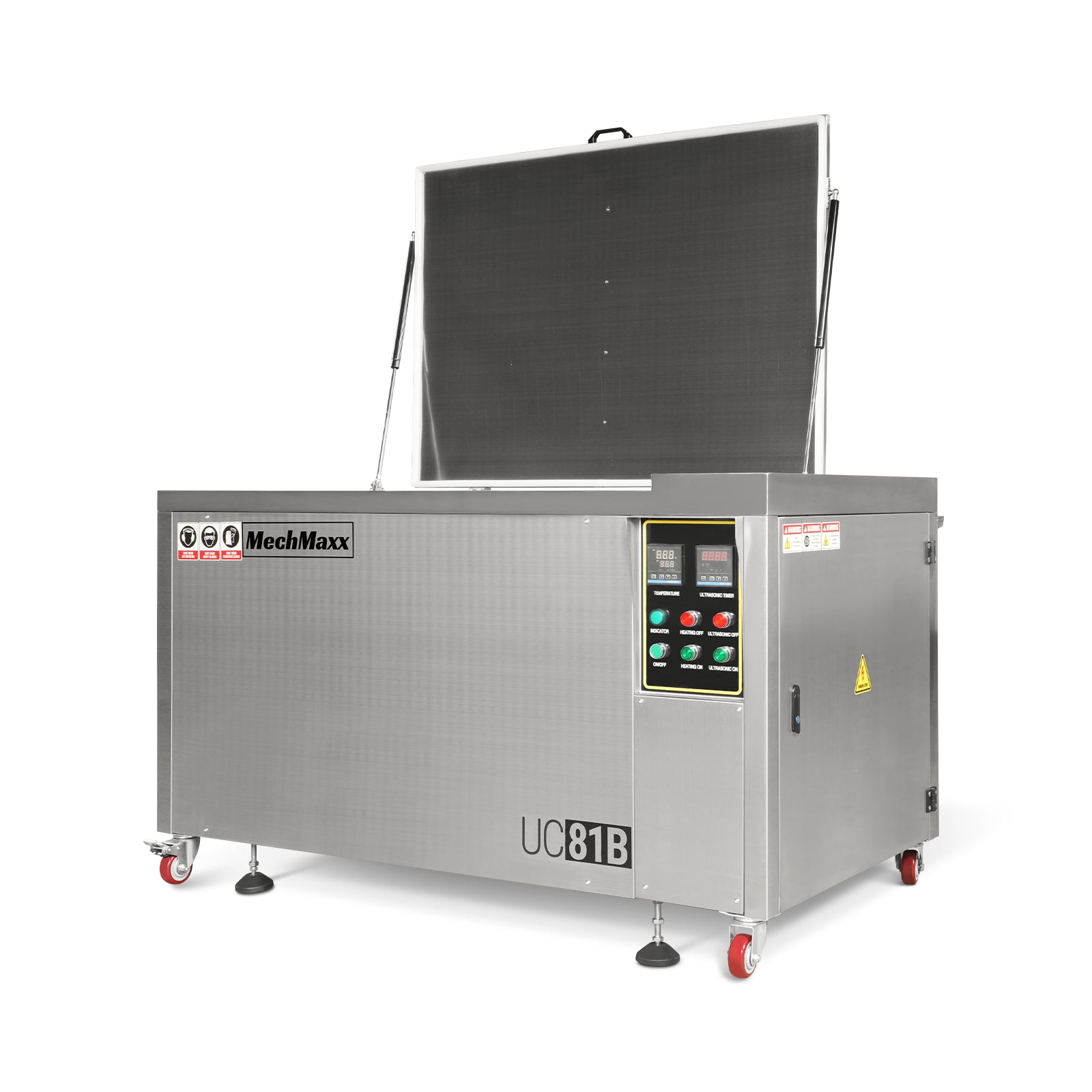

81 Gal / 308L Heavy Duty Industrial Ultrasonic Parts Washer, 28kHz 40 Transducers, SS304 Tank, 10kW Heater, 208–240V 3 Phase Power

Model
UC81B
Voltage
208–240V AC, 60Hz, 3-Phase (3P + Ground)
Recommended Wire
AWG 10 Cu
Ultrasonic power
1.8KW / 2.5HP

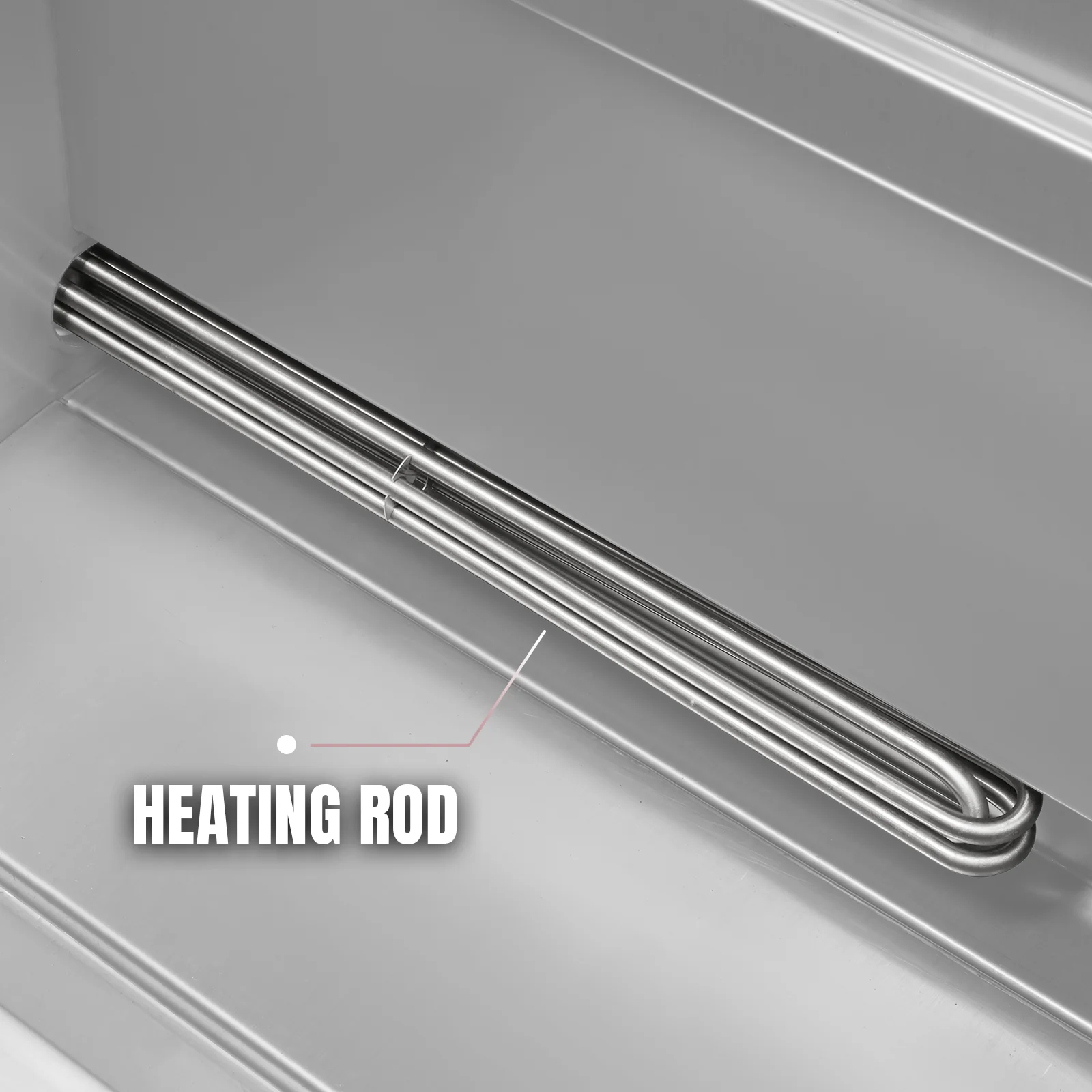

Heating power
10KW / 13.4HP
Temperature Control Range
Ambiance149℉
Ultrasonic Frequency
28kHz
Transducer QTY
40 Pcs (industrial-grade)
Machine Size（L×W×H）
57.5×40.3×34.2 in
Tank Size（L×W×H）
39.4×21.7×22 in

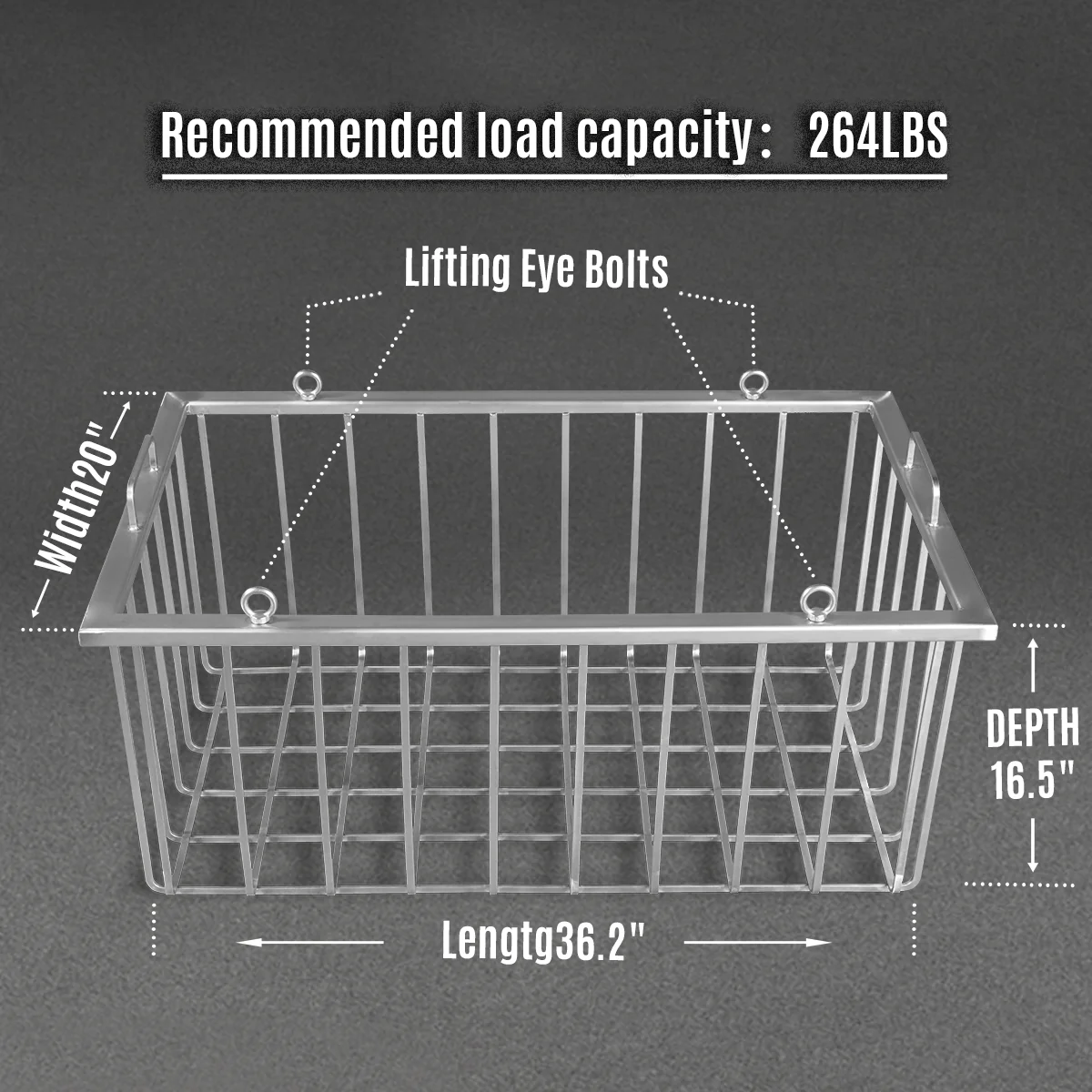

Big Basket Size（L×W×H）
36.2×20×16.5 in
Weight Capacity ( Big Basket )
264 lbs( 120 kg)

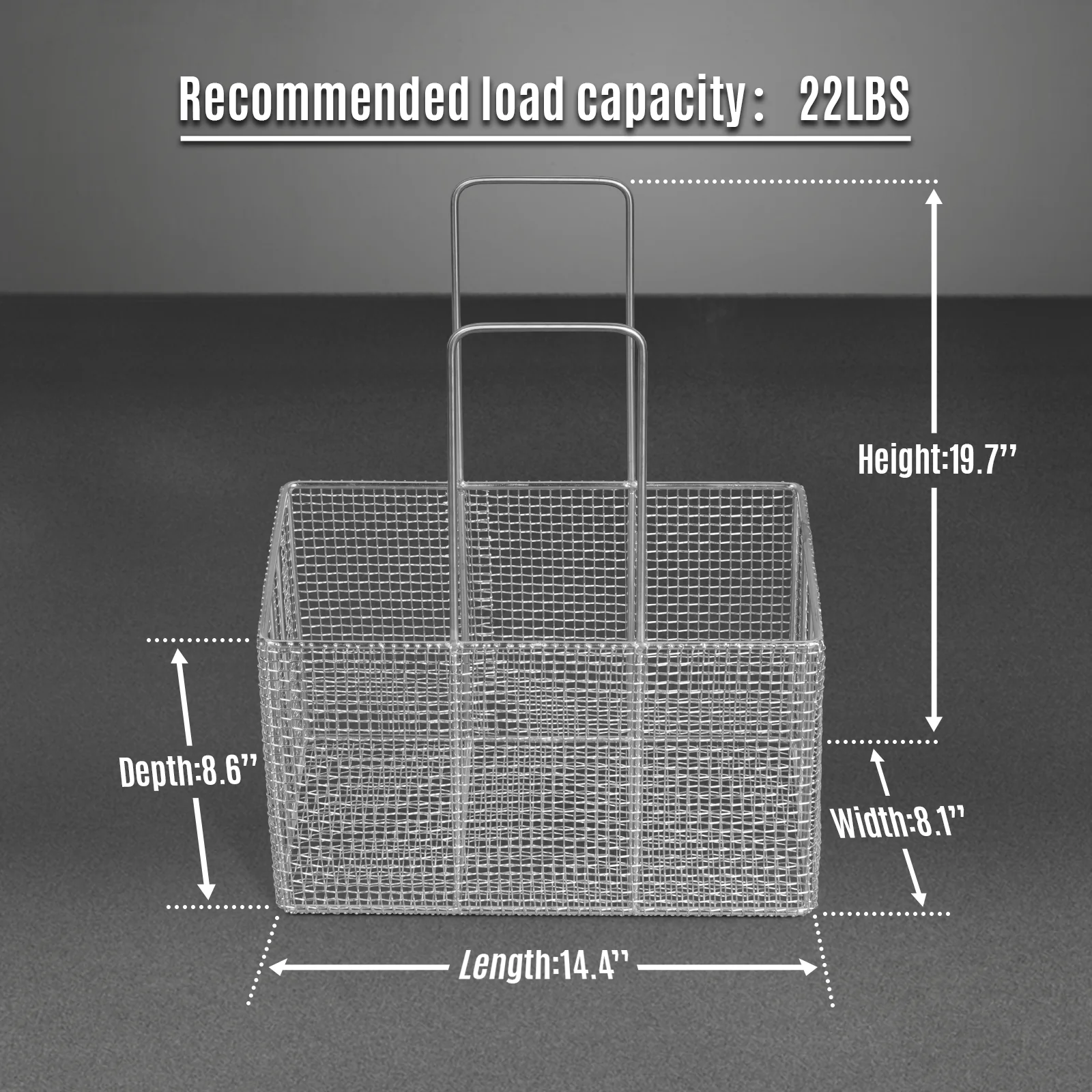

Small Basket Size（L×W×H）
14.4×8.1×8.6 in
Weight Capacity ( Small Basket )
22 lbs ( 10kg )
Tank Volume
81 GAL / 308 L
Tank material & Thickness
SUS304 / 2.0mm
Outer Panel Material & Thickness
SUS201 / 1.0mm
Packing Size（L×W×H）
63×41.3×41.3 in
N.W./ G.W
529 / 717LBS
