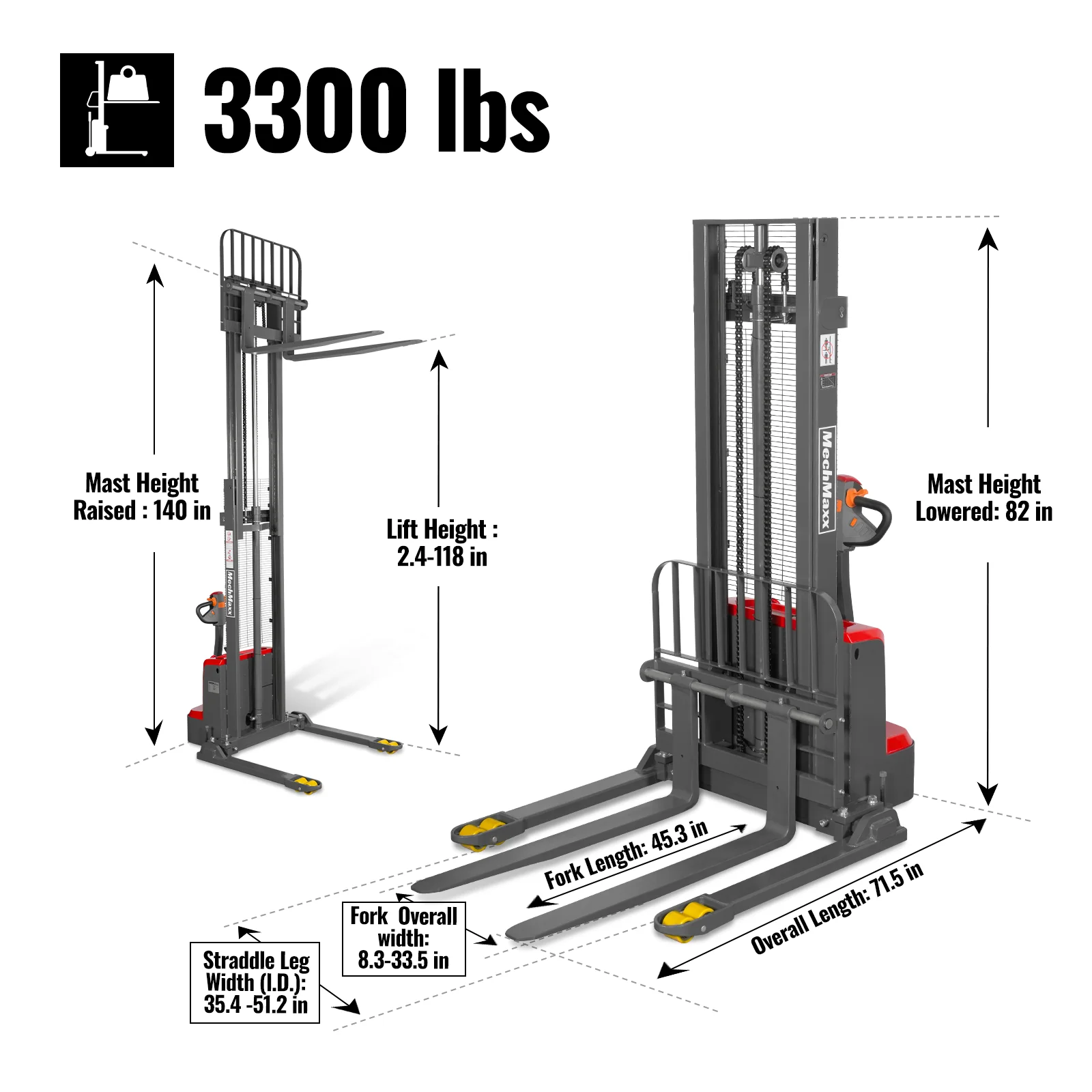

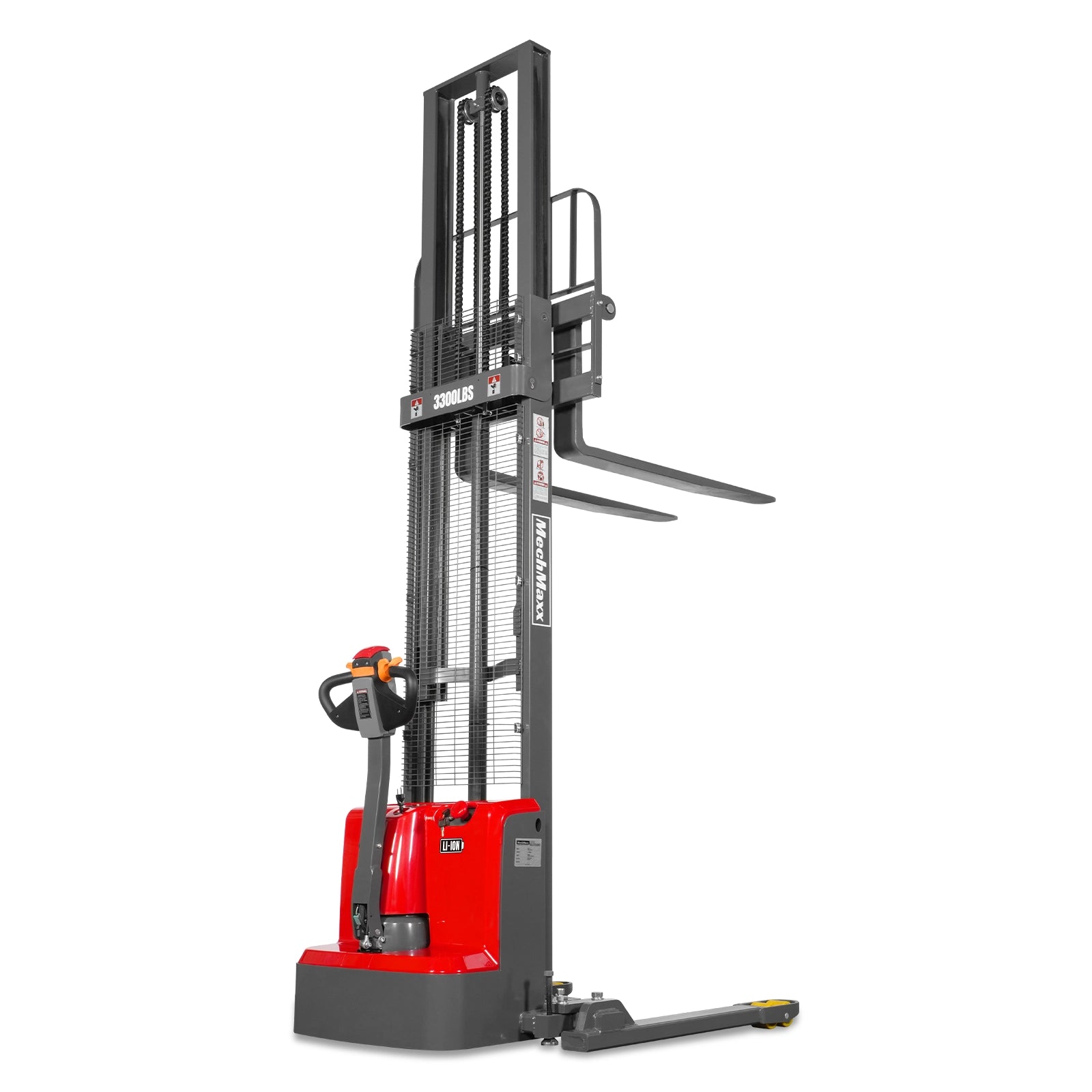

3300lbs Lithium-ion Electric Straddle Stacker, 138″ Lift, Adjustable Legs & Forks, F33-138S

Load Capacity
3300 lbs
Turing Radius
53 in
Operator Position
Walkie
Lifting Speed (laden/unladen)
18.1/26.8 fpm
Tire Type
Polyurethane
Lowering Speed (laden/unladen)
22/19.3 fpm
Overall Length
71.5 in
Driving Speed (laden/unladen)
2.5/2.6 mph
Max Lift Height
138 in
Max Gradeability (laden/unladen)
3/8%
Min Lift Height
2.4 in
Service Brake
electromagnetic
Mast Height (raised)
160 in
Battery
24V/60Ah Maintenance-free Li-ion Battery
Mast Height (lowered)
92 in
Charger
24V/30A Built-in
Straddle Leg Width (I.D.)
35.4 – 51.2 in
Controller Brand
Curtis
Straddle Leg Width (O.D.)
43.3 – 59 in
Drive Motor
0.75 kW DC
Load Center
23.6 in
Lift Motor
2.2 kW
Fork Overall Width
8.3 – 33.5 in
Packing Size (LxWxH)
43 x 37 x 97 in
Fork Size (TxWxL)
1.4 x 4 x 45.3 in
Weight (N.W/G.W.)
1410/1565 lbs
